Installation

Be sure to read all precautions before attempting to install any of our lifting devices or accessories.

1.

Combine lifter with a hook.

2.

Connect the main power to the lifter.

3.

Attach light fixture to lifter using the provided shackle

4.

Press DOWN button to descent.

5.

Combine lifter with light fixture using the shackle, and connect the power.

STANDARD INSTALLATION

Standard Mount

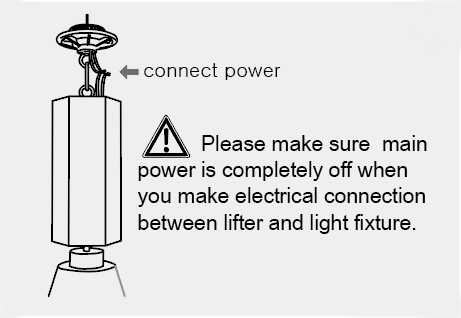

Ensure that the main power supply is turned OFF before installation.


1.


1.

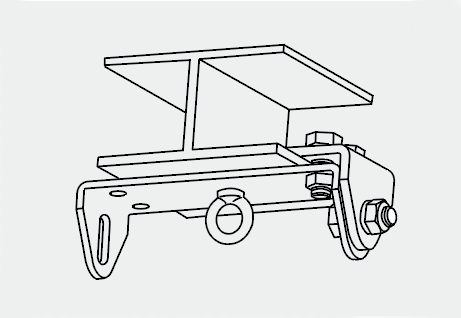

​Combine clamp and eye-bolt


2.

Combine holder and clamp on one side.

H-Beam Mounting Kit


6.

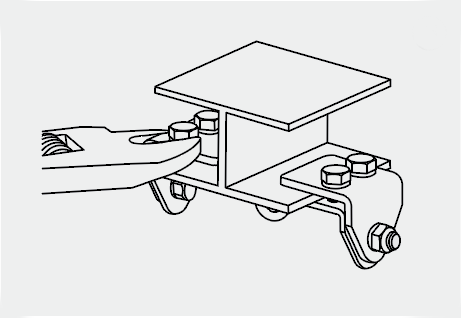

Attach connection bolts on both sides and tighten to keep to clamp/holder unit secure on H-Beam


7.

Combine the lifter with the H-beam fitting


8.

Combine lifter with light fixture using the shackle, and connect the power.


3

Place holder/clamp around one edge of the H-beam.


4.

Attach other holder to other side of H-beam


5.

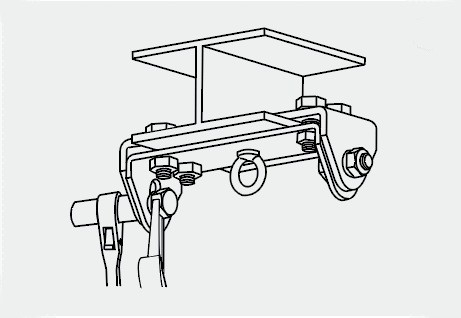

Tighten all four bolts securing holders and clamp around H-beam.

H-BEAM MOUNTING KIT

H-Beam Mount

1.

Combine a holding bracket with clamp at one side first


2.

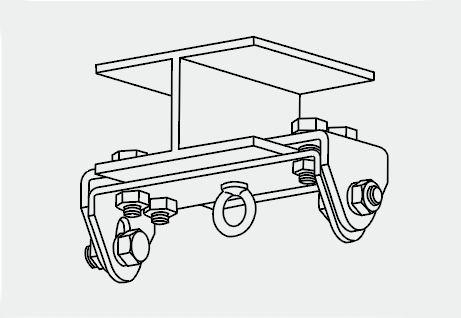

Put clamp into H-fitting as per below figure.


3.

Combine other side holding bracket with clamp & H-fitting.


4.

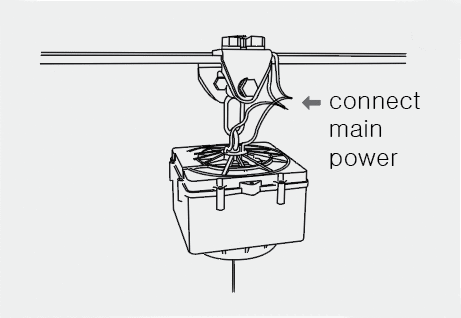

Combine lifter with H-fitting by the shackle and connect main power to the lifter.


5.

Combine lifter with lighting fixture by a shackle, and connect the power.

PIPE MOUNTING KIT

Pipe Mount

Need help deciding which lifter you need for your specific application?

Contact Us


1.

Put anchor bolts into holes of Holder and screw them to fix.


2.

Connect main power.


3.

Mount lifter with light fixture by the shackle, and connect power wire.

FLAT ANGLE MOUNTING KIT

Flat Angle

1.

Drive a stud on the ceiling.


2.

Fasten stud to the flat angle braket.


3.

Connect the wires.


4.

Recess mounting plate.


5.

By using shackle to connect lifter and fixture before connecting electricity wire.

RECESS MOUNTING KIT

Recess
